SUCHERGEBNIS
9910 MARLIN 3D
Diamantbelegte Schleifstifte für die Zerspanung von Hartmetall

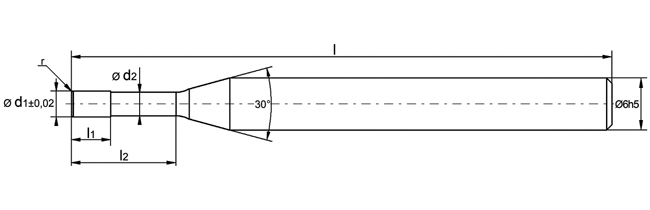

| Bestell-Nr. | d1 | d2 | r | l1 | l2 | d | l | In den Warenkorb |
|---|---|---|---|---|---|---|---|---|
| 9910.0100.010.040M | 1.0 | 0.7 | 0.1 | 2.0 | 4.0 | 6.0 | 62.0 | |
| 9910.0150.015.060M | 1.5 | 1.25 | 0.15 | 3.0 | 6.0 | 6.0 | 62.0 | |
| 9910.0600.200.240G | 6.0 | 5.5 | 2.0 | 9.0 | 24.0 | 6.0 | 62.0 | |
| 9910.0600.050.240M | 6.0 | 5.6 | 0.5 | 9.0 | 24.0 | 6.0 | 62.0 | |
| 9910.0500.050.200M | 5.0 | 4.6 | 0.5 | 7.5 | 20.0 | 6.0 | 62.0 | |
| 9910.0400.150.160G | 4.0 | 3.5 | 1.5 | 6.0 | 16.0 | 6.0 | 62.0 | |
| 9910.0400.050.160M | 4.0 | 3.6 | 0.5 | 6.0 | 16.0 | 6.0 | 62.0 | |
| 9910.0300.020.120M | 3.0 | 2.7 | 0.2 | 4.5 | 12.0 | 6.0 | 62.0 | |
| 9910.0300.100.120M | 3.0 | 2.6 | 1.0 | 4.5 | 12.0 | 6.0 | 62.0 | |
| 9910.0250.050.080M | 2.5 | 2.15 | 0.5 | 4.0 | 8.0 | 6.0 | 62.0 | |
| 9910.0200.020.080M | 2.0 | 1.7 | 0.2 | 3.0 | 8.0 | 6.0 | 62.0 |
Artikelbeschreibung
- Schleifstifte: torisch
- Material: Hartmetall
- Beschichtung: Diamant
- M: Mittleres Diamantkorn
- G: Grobes Diamantkorn
- Halsverlängerungen oder Schaft (Gesamtlänge) kürzen - auf Anfrage
