589.B4 QUEEN BEE
VHM-Kugelfräser für die HSC-Bearbeitung

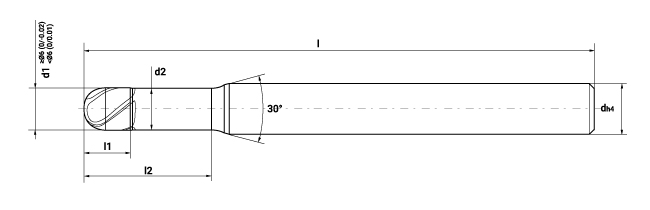

| Bestell-Nr. | d1 | d2 | r | l1 | l2 | d | l | Z | In den Warenkorb |
|---|---|---|---|---|---|---|---|---|---|
| 589.B4.0400.200.080 | 4.0 | 3.9 | 2.0 | 4.5 | 8.0 | 6.0 | 60.0 | 4 | |
| 589.B4.0400.200.120 | 4.0 | 3.9 | 2.0 | 4.5 | 12.0 | 6.0 | 60.0 | 4 | |
| 589.B4.0500.250.100 | 5.0 | 4.9 | 2.5 | 5.5 | 10.0 | 6.0 | 60.0 | 4 | |
| 589.B4.0500.250.150 | 5.0 | 4.9 | 2.5 | 5.5 | 15.0 | 6.0 | 60.0 | 4 | |
| 589.B4.0600.300.120 | 6.0 | 5.9 | 3.0 | 6.5 | 12.0 | 6.0 | 60.0 | 4 | |
| 589.B4.0600.300.200 | 6.0 | 5.9 | 3.0 | 6.5 | 20.0 | 6.0 | 60.0 | 4 | |
| 589.B4.0800.400.150 | 8.0 | 7.9 | 4.0 | 8.5 | 15.0 | 8.0 | 60.0 | 4 | |
| 589.B4.0800.400.250 | 8.0 | 7.9 | 4.0 | 8.5 | 25.0 | 8.0 | 60.0 | 4 | |
| 589.B4.1000.500.200 | 10.0 | 9.9 | 5.0 | 10.5 | 20.0 | 10.0 | 70.0 | 4 | |
| 589.B4.1000.500.300 | 10.0 | 9.9 | 5.0 | 10.5 | 30.0 | 10.0 | 70.0 | 4 | |
| 589.B4.1200.600.250 | 12.0 | 11.9 | 6.0 | 12.5 | 25.0 | 12.0 | 70.0 | 4 | |
| 589.B4.1200.600.300 | 12.0 | 11.9 | 6.0 | 12.5 | 30.0 | 12.0 | 70.0 | 4 |
Artikelbeschreibung
- Mit Freilänge
- Neue Schaftgeometrie
- Optimierte Zentrums- und Mikrogeometrie
- Innovative Beschichtungstechnologie
- Feinste Oberflächen, Maß- und Formgenauigk
- Rundlaufgenauigkeit: 0,003 mm ≤ Ø 6,0 mm
- ≤ Ø 6,0 mm Linienform max. 3,0 μm
